How to Unclog MakerBot Sketch: A Practical DIY Guide
Learn how to unclog MakerBot Sketch with a safe, step-by-step approach. Diagnose nozzle jams, clean the extruder, perform a cold pull, and test extrusion to restore reliable prints. Includes tools, safety tips, and maintenance to prevent future clogs.
By following this guide, you will diagnose and clear a clog in your MakerBot Sketch extruder, safely remove jammed filament, and restore reliable extrusion. You’ll learn how to inspect the nozzle, clean the drive gears, perform a cold pull, and run a test print to confirm success. No advanced tools required, and steps are shown with safety tips throughout.
Understanding the clog in MakerBot Sketch
Clogs on the MakerBot Sketch usually fall into a few categories: a partially blocked nozzle, a jam in the heat break, or an obstructed PTFE tube. When you’re learning how to unclog makerbot sketch, start by diagnosing which area is restricted. According to Unclog Drain, most printer clogs originate from filament moisture, burnt residue, or debris that collects at the nozzle over time. If you’re dealing with a stubborn jam, the only safe path forward is careful disassembly and cleaning rather than forcing filament through. In this guide, we’ll walk through safe diagnostics, cleaning techniques, and tests to confirm you’ve restored reliable extrusion. This approach also helps you build a routine that reduces future clogs and extends the life of your printer.
Safety and Preparation: Get Ready to Unclog
Before touching the extruder, power down the printer and unplug it. Allow the nozzle and hotend to cool completely before handling; hot surfaces can cause burns. Gather the recommended tools and materials, organize your workspace, and ensure you have a clean surface for parts. Because MakerBot Sketch is a precision device, take your time rather than rushing through steps. The Unclog Drain approach emphasizes patient, methodical work—treat this as a small repair project rather than a quick fix. Ensure you have a filament sample of the same material to test extrusion after cleaning, and consider printing a simple calibration cube to confirm flow after the fix. A calm, methodical approach reduces mistakes and improves your chances of a successful unclog.
Tools and Safety Gear You Need
Prepare a dedicated cleanup kit with essential items. Use heat-resistant gloves and eye protection, a clean lint-free cloth, and a set of small tools designed for printer maintenance. Have a nozzle cleaning needle or ultra-fine wire (only for cleaning the nozzle hole) and a dedicated nozzle wrench if you plan to remove the hot-end components. Keep a spare PTFE tube and a replacement nozzle on hand in case you damage components during cleaning. Finally, have isopropyl alcohol for surface cleaning and a small brush to remove debris from crevices. Do not use metal objects that can scratch the nozzle or heat break. This kit helps you stay organized and safe while you diagnose and fix clogs.

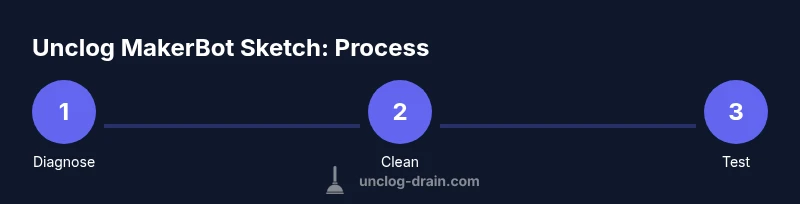

Step-by-Step Diagnostic Flow: Find the Clog Location
- Power off and unplug; 2) Remove filament and inspect for obvious kinks or discoloration; 3) Heat the nozzle to the filament temperature and attempt a small extrusion to see if filament flows; 4) If extrusion remains stalled, proceed to nozzle removal for deeper inspection; 5) Inspect the PTFE tube for cracks or detachment; 6) Check drive gears for filament grinding or obstruction; 7) Document findings before reassembly. This diagnostic flow helps you locate the blockage without guessing, reducing the risk of damage.
Nozzle Cleaning Techniques: Safe and Effective
Begin with a careful cleaning of the nozzle tip. Use a cleaning needle or a very fine wire to clear the small opening, never forcing material through if resistance is strong. If you must remove the nozzle, do so with the proper wrench and keep track of the orientation to avoid cross-threading. After cleaning, reassemble the nozzle securely and reheat to the recommended temperature for your filament before attempting extrusion. This step reduces the chance of re-clogging caused by residual debris.
Clearing the Filament Path: Drive Gear, PTFE Tube, and More
Inspect the drive gear for scoring or embedded filament pieces. If you find buildup, remove the filament path so you can clean the gear and the contact surfaces. Check the PTFE tube for kinks, cracks, or loose fittings; a compromised tube can cause jams and inconsistent extrusion. Replace any damaged components as needed, and ensure that the tube seats fully into both the hot end and the extruder. A clean, properly aligned path ensures smooth, consistent extrusion after unclogging.
The Cold Pull Method for Stubborn Clogs
If filament debris remains, perform a cold pull to pull out the blockage. Heat the nozzle to the printing temperature for your filament, manually push a short segment of filament, then let the nozzle cool to a safe handling temperature before pulling the filament out slowly. The cold pull can extract fine particles and entrapped plastic that resisted other cleaning methods. Repeat if necessary with fresh filament until the stuck material no longer adheres to the filament strand.
Reassemble, Calibrate, and Test Print
Reassemble all disassembled parts securely, then perform a fresh calibration routine. Level the bed, re-run a filament length test, and print a simple calibration cube. Observe the extrusion, layer adhesion, and surface finish. If issues persist, re-inspect the nozzle, PTFE tube, and drive gears; sometimes a second clean or a component swap is required. Once consistent extrusion is achieved, resume normal printing with a controlled test using your typical filament.
Preventative Maintenance to Reduce Future Clogs
Adopt simple habits to minimize clog risks. Store filament in a dry environment to prevent moisture absorption, use spool holders that keep filament aligned, and regularly inspect the nozzle for signs of wear or residue. Schedule routine maintenance and keep your replacement parts close at hand. A proactive approach reduces downtime and keeps MakerBot Sketch running reliably.
Troubleshooting Quick Tips
- If you hear grinding noises, stop printing and inspect the drive gear and filament path.
- If extrusion is inconsistent, re-check temperature settings and calibrate the extruder steps.
- If jams recur after a print, consider replacing the PTFE tube or nozzle and double-checking filament quality.
- Document each fix so you can repeat successful steps in the future.
Tools & Materials
- Safety gear (heat-resistant gloves, safety glasses)(Protect hands and eyes during hot-end work.)
- Replacement nozzle(Keep on hand in case the nozzle is damaged during cleaning.)
- Nozzle cleaning needle or ultra-fine wire(Only use for the nozzle opening; avoid broad wires that could damage the throat.)
- Calipers or digital caliper(Useful for measuring nozzle hole diameter if needed.)
- Replacement PTFE tube(Have on hand for a mid-clean replacement if the tube is cracked or loose.)
- Lint-free cleaning cloth(For wiping residues and surfaces around the hot-end.)
- Isopropyl alcohol (70-90%)(Surface cleaner for metal components; avoid contact with hot surfaces.)
- Filament sample of same material(For test extrusion after cleaning.)
- Small brush(To clear debris from crevices in the hot-end housing.)
Steps
Estimated time: 60-120 minutes
- 1
Power down and cool
Turn off the printer, unplug it, and allow the hotend to return to room temperature. This prevents burns and protects delicate components while you inspect the extruder.
Tip: Never attempt maintenance while the hot-end is hot. - 2
Remove filament and inspect
Carefully remove the filament from the spool, looking for signs of moisture, discoloration, or kinks that indicate a blockage or degraded filament.
Tip: Take photos of troublesome areas to reference during reassembly. - 3
Heat and test extrusion
Heat the nozzle to the typical printing temperature for your filament and attempt a small push with the filament. If it won’t flow, proceed to nozzle inspection.
Tip: Hold the feed manually to feel whether the filament binds or slips. - 4
Remove the nozzle for deep cleaning
If extrusion remains blocked, use the appropriate nozzle wrench to carefully loosen and remove the nozzle. Clean the opening with a cleaning needle and inspect for damage.
Tip: Keep track of the nozzle orientation to avoid cross-threading. - 5
Inspect PTFE tube and drive gear
Check the PTFE tube for wear, cracks, or detachment. Inspect the drive gear for scoring or jammed filament that could cause repeated clogs.
Tip: If the tube is damaged, replace it before reassembling. - 6
Perform a cold pull
Heat to the filament temperature, push in a short filament segment, let it cool, then pull slowly to remove debris. Repeat if necessary with fresh filament.
Tip: Avoid forcing the filament; let the debris loosen gradually. - 7
Reassemble and recalibrate
Reattach the nozzle, ensure the heat sink is secure, and recalibrate the extruder steps and bed leveling. Run a test print to verify smooth extrusion.
Tip: Ensure all fasteners are snug but not overtightened. - 8
Run a test print
Print a simple calibration object to verify consistent extrusion and layer height before resuming normal prints.
Tip: Watch the first layer closely for perfect adhesion and flow. - 9
Prevent future clogs
Implement moisture control for filaments, avoid reusing brittle filaments, and keep a regular maintenance schedule to reduce future clogs.
Tip: Store filament in a sealed bag with desiccant when not in use.
Common Questions
What causes clogs in MakerBot Sketch extruders?
Clogs are typically caused by moisture in filament, burnt residue at the nozzle, or a partial blockage in the heat break or PTFE tube. Regular maintenance and using dry filament helps prevent this.
Clogs usually come from moisture in filament, burnt residue, or a partial blockage in the nozzle, heat break, or PTFE tube. Regular maintenance helps prevent this.
How can I tell if my extruder is clogged vs. skipped extrusion?
Watch for inconsistent extrusion, under-extrusion, and grinding noises. If the nozzle won’t push filament at any temperature, the clog is likely deeper in the hot-end rather than a simple feed issue.
If extrusion is inconsistent or you hear grinding, the clog is likely deeper in the hot end rather than a feed issue.
Is it safe to disassemble the extruder on MakerBot Sketch?
Yes, with the printer unplugged and cooled. Use the correct tools and follow torque guidance to avoid stripping fasteners or damaging components.
Yes, but unplug and let everything cool first, and use the proper tools to avoid damage.
How often should I perform maintenance to prevent clogs?
Perform a quick inspection monthly and a full clean every few months, depending on filament type and usage. Keeping a routine reduces the chance of unexpected clogs.
Do a quick monthly check and a deeper clean every few months based on usage.
Can household cleaners fix a clogged MakerBot Sketch nozzle?
Avoid household cleaners on hot-end components. Use manufacturer-approved cleaning methods and tools to prevent damage to the nozzle and heat break.
Avoid cleaners on hot-end parts; use proper tools and methods to avoid damage.
What should I do if the clog persists after cleaning?
Recheck the heat break, PTFE tube, and drive gear for hidden damage. If needed, replace worn parts and consider seeking professional help.
If it still clogs, inspect the heat break and PTFE tube; replace worn parts if needed.
Watch Video
Key Points
- Identify the clog type before disassembly
- Use safe cleaning tools to avoid nozzle damage
- Cold pull helps remove stubborn debris
- Test with a calibration print to confirm extrusion
- Prevent future clogs with proper filament storage
