This guide shows you how to unclog 510 cartridges step by step. You’ll learn to identify the clogged cartridge, safely disassemble the assembly, clean blockages, and test your system to prevent repeats. Gather basic tools, wear protective gear, and work in a dry area. Follow these steps in sequence for best results.
Understanding the 510 Cartridge and Why It Clogs
In many home plumbing setups, a 510 cartridge refers to a small, replaceable valve component or insert inside a faucet, filter housing, or inline valve. When mineral deposits, soap scum, or organic build-up accumulate, the cartridge can hinder water flow, cause leaks, or trap debris that worsens clogs. If you’re trying to unclog 510 cartridges, your first step is to confirm the cartridge type and its location. This matters because different devices use different cartridge styles and seals, and applying the wrong cleaning method can damage O-rings or threads. According to Unclog Drain, cartridge-related clogs are a common call-out in domestic drain maintenance, especially in households using hard water. Recognizing symptoms—reduced flow, inconsistent pressure, or unusual noises—helps you tailor the approach. Avoid harsh chemical cleaners that can degrade seals; mechanical cleaning with focused scrubbing and gentle flushing often yields safer, longer-lasting results. By understanding the cartridge role in your system, you’ll choose the least invasive, most effective method to unclog 510 cartridges.
Safety and Prep: What to Do Before You Start
Before you touch any cartridge, shut off the water supply and, if applicable, power to any connected devices. Drain residual water into a bucket and lay down towels to catch spills. Put on safety glasses and rubber gloves to protect your eyes and skin from splashes. Read the device’s manual or manufacturer’s notes to locate the cartridge access point and any required tools. Clear a dry, well-lit workspace; moisture can complicate handling small parts. If you detect cracks, leaks, or corroded fittings, pause and reassess. The goal is to reduce risk while you disassemble, clean, and reassemble without forcing components. According to Unclog Drain, thorough preparation improves success rates and minimizes the chance of re-clogs caused by overlooked debris.
Tools and Materials You’ll Need
Prepare a dedicated workspace with a clean tray and towels. Gather the following essentials to unclog 510 cartridges safely: gloves, safety glasses, an adjustable wrench, a screwdriver set (Phillips and flathead), a small flashlight, a bucket, rags or towels, mild dish soap, a soft brush, and a replacement cartridge kit if available. Keep a second container for soaking parts. Having these on hand reduces interruptions and helps you stay organized through the disassembly and cleaning steps.
Step 1: Locate the Clog Location and Access the Cartridge Assembly
Start by identifying where the cartridge sits in your system—faucet valve, filter head, or inline valve. Look for signs of mineral buildup, grime, or debris around the cartridge housing. If there’s a cover or escutcheon plate, carefully remove it with the appropriate screwdriver, noting how parts are aligned for reassembly. Accessing the cartridge correctly minimizes the risk of damaging seals and threads. Prepare a container to catch any residual water and debris as you begin the disassembly.
Step 2: Disassemble the Cartridge Assembly
With the device safely supported, use the adjustable wrench or screwdriver to loosen fittings surrounding the cartridge. Keep track of small washers and O-rings so you don’t lose them during reassembly. Gently separate the cartridge from the housing, avoiding excessive force that could crack plastics. If parts resist, apply a small amount of penetrating oil and wait 2–3 minutes before retrying. Document the orientation of components to ensure accurate reassembly later.
Step 3: Clean the Cartridge and Address Debris
Immerse the cartridge in warm water mixed with a mild soap solution, then scrub with a soft brush to remove mineral deposits and organic buildup. For stubborn grime, use a vinegar solution for a short soak, then rinse thoroughly with clean water. Never use metal abrasive tools that could scratch seals. Dry the cartridge completely before inspection; a damp seal area can cause leaks after reassembly. If the cartridge is cracked or shows signs of wear, replacement is the safer option.
Step 4: Reassemble, Test, and Flush
Align the cartridge with its housing and reinstall any O-rings or washers in their original positions. Tighten fittings securely but avoid over-tightening, which can strip threads. Restore water supply and slowly test the system for leaks. Run several cycles of water to flush debris from the line and confirm normal operation. If you notice recurring slow flow, recheck seals and consider a replacement cartridge kit for long-term reliability.
Common Contaminants and How They Cause Clogs
Mineral buildup (limescale), soap scum, and organic matter from skin or hair can accumulate around the cartridge, restricting flow and increasing friction. Hard water environments accelerate mineral deposits, particularly where there are hot-water lines or repeated mineral-laden flushes. Understanding these contaminants helps you choose safer cleaners and prevent aggressive chemistry from harming seals. Avoid mixing cleaners that can react and release harmful fumes; mechanical cleaning and gentle flushing are often sufficient.
Maintenance to Prevent Future Clogs
Regular inspections of cartridge housings, O-rings, and seals reduce the chance of future clogs. Use a water-softening solution if mineral buildup recurs in your area, and schedule a quarterly check of all accessible valves. Keeping a small cleaning kit on hand can simplify routine maintenance. The most effective prevention combines careful cleaning after use, timely replacement of worn parts, and mindful disposal of debris that could travel into the cartridge assembly. The Unclog Drain approach emphasizes prevention as the best cure.
Tools & Materials
- Gloves (rubber, chemical resistant)(Protect hands from cleaners and sharp parts)
- Safety glasses(Eye protection against splashes)
- Adjustable wrench(Loosen fittings around the cartridge)
- Screwdriver set (Phillips and flat-head)(Remove covers and components)
- Bucket(Catch water and debris)
- Towels or rags(Contain spills and drips)
- Flashlight(Improve visibility in tight spaces)
- Soft brush or old toothbrush(Scrub deposits without scratching)
- Mild dish soap / white vinegar(Safe cleaners for buildup)
- Replacement cartridge kit(Have on hand if seals wear out)

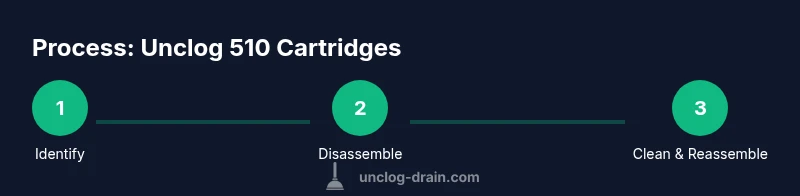

Steps
Estimated time: 60-90 minutes
- 1
Identify cartridge location
Locate where the 510 cartridge sits in the system. Confirm access points and note how parts align for reassembly. This reduces the risk of damaging seals during disassembly.
Tip: Take a quick photo of the assembly before removal. - 2
Shut off water and drain
Power down any related devices and shut the water supply. Drain residual water into a bucket to prevent spills during disassembly.
Tip: Double-check that the supply lines are fully closed. - 3
Disassemble cartridge housing
Loosen fittings and carefully separate the cartridge from the housing, keeping track of washers and O-rings. Do not force components.
Tip: If parts resist, apply a brief amount of penetrating oil and wait. - 4
Clean cartridge and housing
Soak the cartridge in warm soapy water or vinegar solution as appropriate; scrub deposits with a soft brush. Rinse and dry thoroughly.
Tip: Avoid abrasive tools that can scratch seals. - 5
Inspect seals and parts
Check O-rings for cracks or wear. Replace worn seals before reassembly to prevent leaks.
Tip: Keep replacement seals organized and match the correct size. - 6
Reassemble and test
Reinstall the cartridge in the correct orientation, tighten fittings, and restore water. Check for leaks and flush the line.
Tip: Run several cycles to confirm consistent flow. - 7
Evaluate performance
Observe flow rate and pressure after reassembly. If performance remains irregular, consider a full cartridge replacement.
Tip: Document any repeat issues for your maintenance log. - 8
Document and maintain
Record the steps, parts replaced, and date. Schedule routine inspections to prevent future clogs.
Tip: Set a quarterly reminder for maintenance checks.
Common Questions
What is a 510 cartridge in home plumbing, and why does it clog?
In many DIY plumbing setups, a 510 cartridge is a replaceable valve insert or small assembly that can clog from mineral buildup or debris. Identifying the exact cartridge helps choose the correct cleaning method and reduces the risk of damage.
A 510 cartridge is a replaceable valve part in some plumbing setups. It can clog from mineral buildup, so identifying it helps you clean safely.
Can I unclog a cartridge without replacing parts?
Often you can clean and reassemble successfully, but if seals are worn or cracked, replacing the cartridge or seals is the safer long-term solution.
Yes, you can often clean and reassemble, but worn seals may require replacement for a lasting fix.
Is it safe to use chemical drain cleaners on a cartridge?
Chemical cleaners can degrade seals and gaskets; mechanical cleaning with mild soaps and brushes is usually safer for cartridge components.
Chemicals can damage seals, so mechanical cleaning is generally safer for cartridges.
How long does the unclog process typically take?
Most cleanings take about 45 to 60 minutes, depending on access, debris type, and whether replacement parts are needed.
Usually about 45 to 60 minutes, depending on access and debris.
When should I call a professional?
If you encounter persistent leaks, damaged fittings, or repeated clogs despite cleaning, a professional should assess the system.
Call a professional if leaks persist or parts seem damaged.
Watch Video
Key Points
- Identify the cartridge before disassembly
- Use the right tools to avoid damage
- Avoid harsh chemicals that harm seals
- Test for leaks after reassembly
- Maintain cartridge systems regularly
